High Build Epoxy Flooring System

Seamless High Build Epoxy Coating System for Concrete Substrates

Seamless High Build Epoxy Coating System for Concrete Substrates

Perdure HBE is seamless high build epoxy floor coating. It is typically applied at 20 to 25 mil thickness (1 mil = 1/1000th inch). This floor coating system improves aesthetics and provides smooth, durable and non-slip flooring to light to medium traffic. This high build epoxy system can be top coated with polyurethane or polyaspartic polyurea coatings to enhance abrasion resistance, gloss retention and abrasion resistant properties. To increase the coefficient of friction (make it non-slippery), non-skid additive can be introduced in the topcoat. Perdure HBE can be installed with integral cover base for areas requiring seamless wall to floor coatings.

  • Suitable for light to medium traffic
  • Very low maintenance
  • Safe (slip resistant finish)
  • Zero to Very Low VOC
  • Accepts various topcoats for desired properties
  • Offices
  • Retails Stores
  • Restaurants
  • Meeting rooms
  • Museums
  • Warehouses
  • Utility Rooms
  • Laboratories
  • Lobby Areas
  • Cafeterias

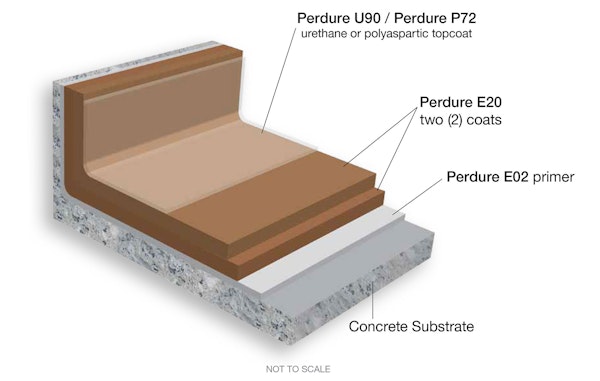

1000sq.ft. at 20-25 mil Thickness

Note: The estimate below is based on standard application rates and methods. On site application rates may vary depending upon the site conditions and application methods.


    • Perdure E02 – 4.0gallons


    • Perdure E20 – 12 gallons
      (For Chemical Resistance, replace Perdure E20 with Perdure NE25)

    Top coat
    (Choose one of the following)

    • Perdure U45 (matte) – 3.0gallons
    • Perdure U46 (gloss) – 3.0gallons
    • Perdure U90 (gloss or satin) – 3.0gallons
    • Perdure P72 (gloss) – 2.0 gallons

    Recommended Tools
